    KD Titanium GR5 Polycentric Disarticulation Knee Joint

    Ask Lasest Price
    Brand Name : HK PROSTHETIC&ORTHOTIC
    Model Number : CHG-06S / CHG-06T
    Certification : CE And ISO13485
    Price : USD 220~60 Per Pcs
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000 Pcs Per Year
    Delivery Time : Within 7 Work Days
    • Product Details
    • Company Profile

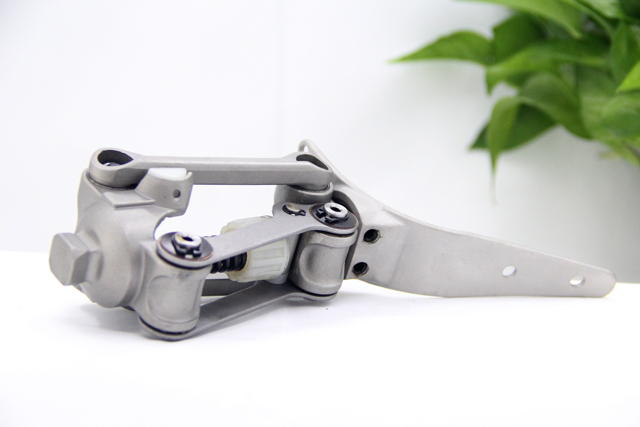

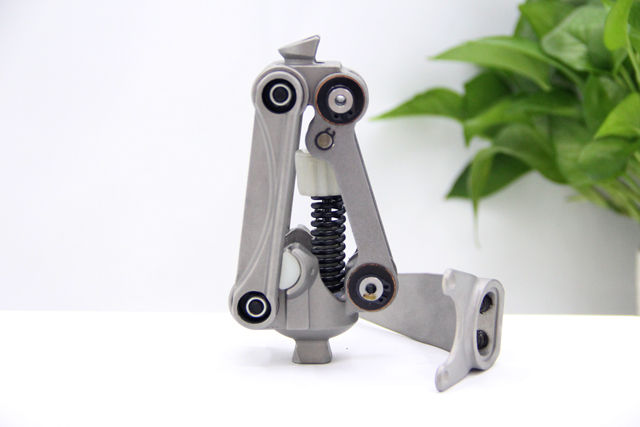

    KD Titanium GR5 Polycentric Disarticulation Knee Joint

    Prosthetic Knee Joint-Polycentric Four Bar Linkage Prosthetic Knee Joint For KD Stainless Steel 630 Titanium GR5

    • For knee disarticulation • Polycentric• With mechanical extension assist
    • Suitable for max. S.S100 kg (220lbs) / Ti 125Kg(275Lbs) body weight
    Recommendation:
    • For knee disarticulation amputees
    • With moderate functional levels
    • Normal stability
    • Not suitable for insecure amputees and those with higher functional levels

    Description:
    The upper joint section with adjustment core and the lower joint section with pyramid are connected to each
    other with anterior and posterior linkage bars. The lamination anchor is the detachable connection to the
    socket. The stance phase stability is achieved through polycentric kinematics. Extension assist and axial
    friction are both adjustable.

    Technical Data:
    • Knee flexion range: approx. 110° • Height (knee center - upper edge): 18 mm


    Product NumberMaterialStandardPart WeightWeight Limit
    CHG—06SCasting S.Steel941g220lbs
    CHG—06TTitanium517g275lbs




    Q: Are you a manufacturer or a trading company?

    A: We are the manufacturer, providing OEM & ODM service.

    Q: How many years since your company start this business?

    A: We began manufacturing prosthetics and orthotics parts since the year 2002.

    Q: Did your factory Register for export and import?

    A: Yes. We applied full range of documents for exportation and importation.

    Q: Did your factory and products approved by any testing or certification?

    A: yes. We applied CE and ISO13485 medical certification.

    Q: May I apply to be one distributor or sole agent in our country to sell your products?

    A: yes. This issue can be have a discussion.

    Q: May I apply some free samples for testing before purchasing the full range of production?

    A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

    Q: How to deal for sample order and regular order?

    A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

    Q: How faster u can ship out the order?

    A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

    Q: Which way are acceptable for the payment?

    A: TT/ Paypal / Western Union

    Q: Can you provide us the best price?

    A: Yes, each Item have differential pricing according to quantity.

    Q:What’s your Quality warranty?

    A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

    Q: Can we visit your factory?

    A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
